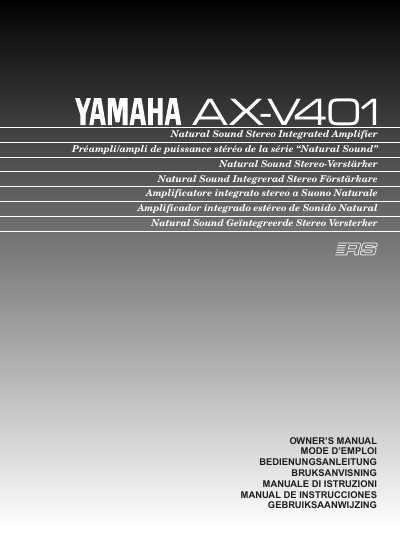

YAMAHA AX-V401 Manual

About this manual

The Yamaha AX-401 is a stereo amplifier featuring 55W + 55W RMS output power at 8 ohms with 0.04% THD and a frequency response of 20-20,000 Hz. It includes features such as high dynamic power, low impedance drive capability, continuously variable loudness control, source direct switch, video signal input/output capability, and remote control functionality.

The document details the supplied accessories including a remote control transmitter and AA batteries. It covers safety precautions regarding ventilation, grounding, and voltage selection, along with step-by-step instructions for connecting speakers and various audio/video components like turntables, CD players, tuners, tape decks, LD players, and TVs.

What's inside

• Supplied Accessories
• Caution
• Connections
• Operations
• Remote Control Transmitter
• Notes about the Remote Control Transmitter
• Troubleshooting
• Specifications

Specifications

Frequently asked questions

What is the maximum power that can be connected to the switched AC outlets?

The maximum power for Europe and General models is 100 watts total.

What are the voltage options for this amplifier?

The unit supports voltages of 110/120/220/240 V AC at 50/60 Hz.

What is the priority order for audio sources when multiple inputs are selected?

The priority order is: 1) TAPE 1, 2) VCR/TAPE 2, 3) LD/TV, TUNER, CD or PHONO.
