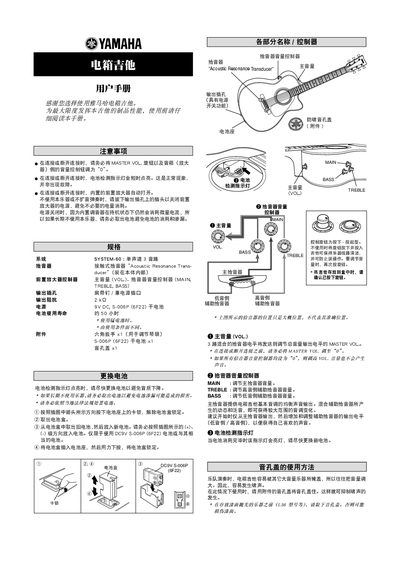

Yamaha electric guitar instruction manual, including battery replacement and tuner usage
The Yamaha SYSTEM-60 is an acoustic-electric guitar featuring a single-channel 3-way pickup system with an internal Acoustic Resonance Transducer. The instrument includes controls for main volume, pickup balance (treble/bass), and a built-in tuner that consumes power even when the unit is off.
To operate the guitar safely, users must set the MASTER VOL knob to zero before connecting or disconnecting cables to prevent damage. When the battery indicator light turns on, it signifies low battery; the manual advises replacing the 9V S-006P (6F22) battery immediately to avoid performance issues. This manual is written in Chinese.
| System Type | Single channel 3-way pickup system |
|---|---|
| Pickup Type | Contact Pickup Acoustic Resonance Transducer |
| Output Impedance | 2kΩ |
| Power Source | 9V DC, S-006P (6F22) dry battery |
| Battery Life | Approximately 50 hours |
You must set the MASTER VOL knob and the amplifier volume control to '0' to prevent damage.
It indicates that the battery is depleted and needs to be replaced immediately.
It requires a 9V DC S-006P (6F22) dry battery.
