The EBD51RC4AKFA is a 64M×72 bits, 1 rank Double Data Rate (DDR) SDRAM Module, mounting 18 pieces of DDR SDRAM sealed in TSOP package. It features high-speed data transfer, high-density mounting, and reliable data bus design.

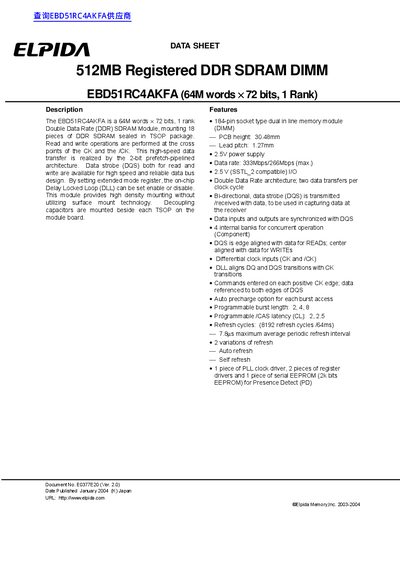

The document describes the EBD51RC4AKFA, a 64M words x 72 bits, 1 rank Double Data Rate (DDR) SDRAM Module. It features an 184-pin socket type dual in line memory module (DIMM) design with a PCB height of 30.48mm and lead pitch of 1.27mm.
The module utilizes 2.5V power supply compatible with SSTL_2 I/O standards. It supports data rates of up to 333Mbps/266Mbps using a 2-bit prefetch-pipelined architecture. Key features include bi-directional data strobe (DQS) for high-speed and reliable data bus design, four internal banks for concurrent operation, and programmable burst lengths.
| Capacity | 512MB (64M words x 72 bits) |
|---|---|
| Rank | 1 Rank |
| Package Type | 184-pin DIMM |
| PCB Height | 30.48mm |
| Lead Pitch | 1.27mm |
| Power Supply | 2.5V |
| Data Rate (Max) | 333Mbps/266Mbps |
| I/O Standard | SSTL_2 compatible |
| Architecture | Double Data Rate |
| Internal Banks | 4 banks |
The maximum data rate is 333Mbps.
The PCB height for this 184-pin socket type dual in line memory module (DIMM) is 30.48mm.
This module requires a 2.5V power supply and uses 2.5 V (SSTL_2 compatible) I/O.
The stated maximum data rate for this module is 333Mbps.
