This product is a 64MB SDRAM memory that supports a frequency of 100MHz and uses a 144-pin ZIg Zag Dual tabs socket type package. The voltage is 3.3V.

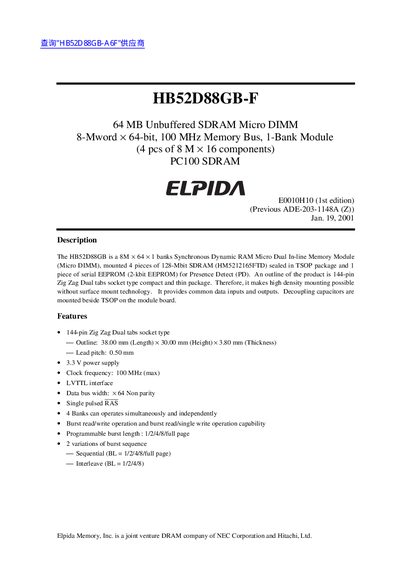

The HB52D88GB is an 8-Mword x 64-bit synchronous dynamic RAM Micro Dual In-line Memory Module (Micro DIMM). It consists of four pieces of 128-Mbit SDRAM (HM5212165FTD) in TSOP packages and one piece of serial EEPROM for presence detection. The module features a compact 144-pin Zig Zag Dual tabs socket type package with dimensions of 38.00 mm x 30.00 mm x 3.80 mm.
| Capacity | 64 MB |
|---|---|
| Organization | 8-Mword x 64-bit |
| Frequency | 100 MHz (max) |
| Voltage | 3.3 V |
| Interface | LVTTL |
| Package Type | 144-pin Zig Zag Dual tabs socket type |
| Dimensions | 38.00 mm x 30.00 mm x 3.80 mm |
| Lead Pitch | 0.50 mm |
The CE latency is programmable to 2 or 3 cycles.
Yes, it supports both burst read/write and burst read/single write operations.
