This document mainly introduces the features and characteristics of HONGFA RELAY's JQX-115F miniature high power relay, such as rated voltage, rated current, maximum switching power, mechanical life and electrical life.

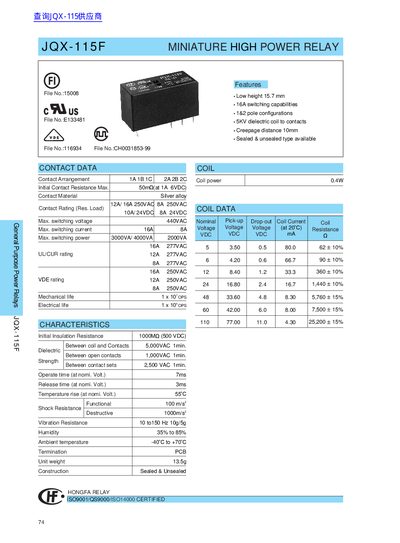

This document provides technical specifications for the Hongfa JQX-115F miniature high power relay. Key features include a low height of 15.7 mm, switching capabilities up to 16A, and availability in both sealed and unsealed configurations with 1 or 2 pole arrangements.
The datasheet details contact data, coil parameters, dielectric strength, and environmental characteristics such as operating temperature ranges from -40°C to +70°C. It also includes ordering information for various coil voltages, contact arrangements, and insulation standards.
| Low height | 15.7 mm |
|---|---|
| Switching capabilities | 16A |
| Dielectric strength (Coil to contacts) | 5KV |
| Creepage distance | 10mm |
| Mechanical life | 1x 10^7 ops |
| Electrical life | 1x 10^6 ops |
| Ambient temperature range | -40°C to +70°C |
The relay is available with coil voltages of 5, 6, 12, 24, 48, 60, and 110VDC.
Available contact materials include AgSnO2 (A), AgNi10 (B), and AgCdO (Nil).
Yes, both Sealed and Unsealed types are available.
