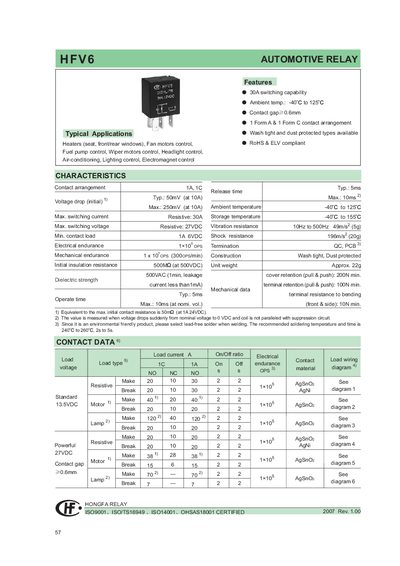

Hongfa HFV6 Automotive Relay Datasheet

The document describes the features and characteristics of a product.

Brand: HONGFA
Document type: Datasheet
Language: English
Pages: 5
File format: PDF
File size: 86 KB
Published: 05 June, 2012
Updated: 28 September, 2023
MD5 checksum: 2B461CE98C180D0DDA9232177485CF40
PDF: Hongfa HFV6 Automotive Relay Datasheet PDF

About this manual

This document provides a comprehensive technical overview of the Hongfa HFV6 series automotive relays. It covers typical applications such as heater control, fan motors, fuel pumps, and wipers. Key features include a 30A switching capability, an operating temperature range from -40°C to 125°C, and availability in wash-tight or dust-protected constructions.

What's inside

Typical Applications
Features
Characteristics
Contact Data
Coil Data
Ordering Information
Outline Dimensions
Wiring Diagram

Specifications

Switching capability	30A
Ambient temperature range	-40°C to 125°C
Contact gap	0.6mm
Contact arrangements	1 Form A & 1 Form C
Unit weight	Approx. 22g

Frequently asked questions

What are the typical applications for the HFV6 relay?

Typical applications include heaters, fan motors control, fuel pump control, wiper motors control, headlight control, air-conditioning, lighting control, and electromagnet control.

Is the HFV6 relay RoHS compliant?

Yes, the relay is RoHS & ELV compliant.
