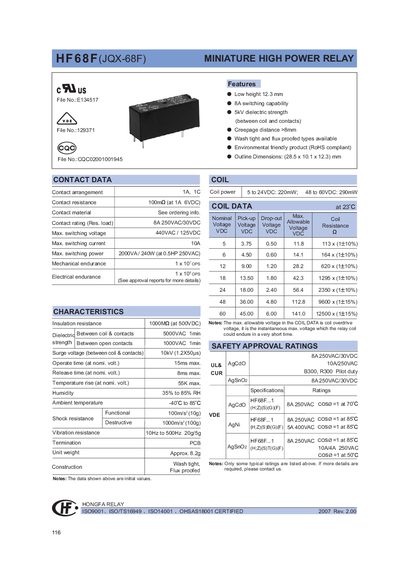

This document is a technical datasheet for the Hongfa HF68F (JQX-68F) miniature high power relay. Key features include a low height of 12.3 mm, an 8A switching capability, and 5kV dielectric strength between coil and contacts. The product is RoHS compliant and available in wash tight or flux proofed constructions.
| Height | 12.3 mm |
|---|---|
| Switching capability | 8A |
| Dielectric strength (between coil and contacts) | 5kV |
| Creepage distance | >8mm |
| Contact resistance | 100mΩ at 1A 6VDC |
| Insulation resistance | 1000MΩ at 500VDC |
| Dielectric strength (between open contacts) | 1000VAC min |
Yes, it is an environmental friendly product and RoHS compliant.
The relay has a low height of 12.3 mm.
At 48 to 60VDC, the coil power is 290mW.
The relay can endure a surge voltage of 10kV (1.2x50us) between the coil and contacts.
