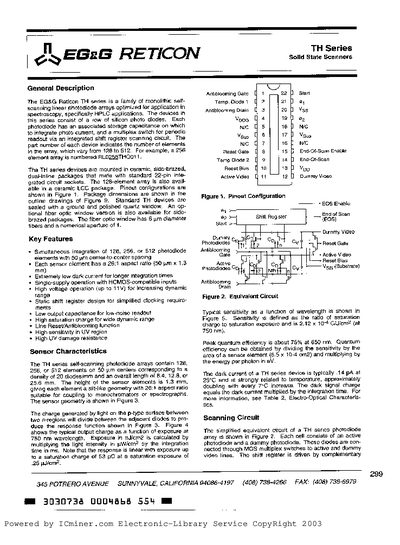

EG&G Reticon TH Series Solid State Scanners Datasheet

Brand: EG&G
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 7
File format: PDF
File size: 276 KB
Published: 11 June, 2012
Updated: 01 October, 2023
MD5 checksum: 4510BD93823F833B9137D9FA2D0B6C14
PDF: EG&G Reticon TH Series Solid State Scanners Datasheet PDF

About this manual

The EG&G Reticon TH series is a family of monolithic self-scanning linear photodiode arrays optimized for application in spectroscopy, specifically HPLC applications. The devices consist of a row of silicon photodiodes with associated storage capacitance and multiplex switches for periodic readout via an integrated shift register. Part numbers indicate the number of elements in the array, which vary from 128 to 512.

What's inside

General Description
Key Features
Sensor Characteristics
Scanning Circuit
Clock and Voltage Requirements
Amplifier Requirements
Line Reset/Antiblooming Control
Pinout Configuration

Specifications

Number of elements	128, 256, or 512
Element height	1.3 mm
Saturation charge	53 pC
Peak quantum efficiency	about 75% at 650 nm
Dark current	.14 pA at 25°C

Frequently asked questions

What are the available element counts for the TH series?

The devices in this series consist of arrays with 128, 256, or 512 elements.

What is the EG&G Reticon TH Series designed for?

The TH series is a family of monolithic self-scanning linear photodiode arrays optimized for application in spectroscopy, specifically HPLC applications.

What is the maximum voltage for high voltage operation?

The devices support high voltage operation up to 11V for increasing dynamic range.

What is the saturation charge of the sensor?

The response is linear with exposure up to a saturation charge of 53 pC.
