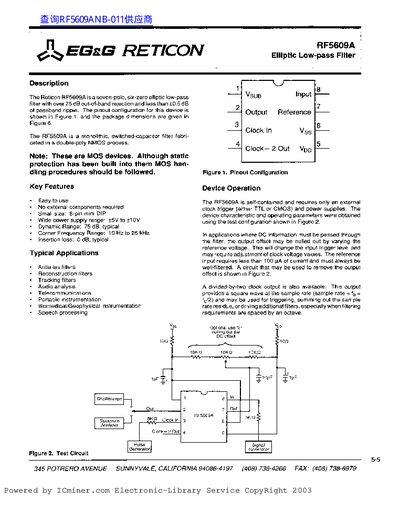

The EG&G Reticon RF5609A is a monolithic, switched-capacitor filter fabricated in a double-poly NMOS process. It features a seven-pole, six-zero elliptic response with over 75 dB of out-of-band rejection and less than +0.5 dB of passband ripple. The device requires no external components other than an external clock trigger (TTL or CMOS) and power supplies.
| Filter Type | Seven-pole, six-zero elliptic low-pass filter |
|---|---|
| Out-of-band Rejection | Over 75 dB |
| Passband Ripple | Less than +0.5 dB |
| Supply Voltage Range | +5V to 410V (typical) |
| Corner Frequency Range | 10 Hz to 25 kHz |
| Quiescent Current (No Load) | 10 to 16 mA |
| Clock Frequency Range | 1 kHz to 2500 kHz |
| Corner Frequency (Min/Max) | 0.01 Hz to 25 kHz |
No, it is a self-contained device that requires only an external clock trigger and power supplies.
It is used in antialias filters, reconstruction filters, tracking filters, audio analysis, telecommunications, and biomedical instrumentation.
The typical sampling rate is 50 times the corner frequency.
