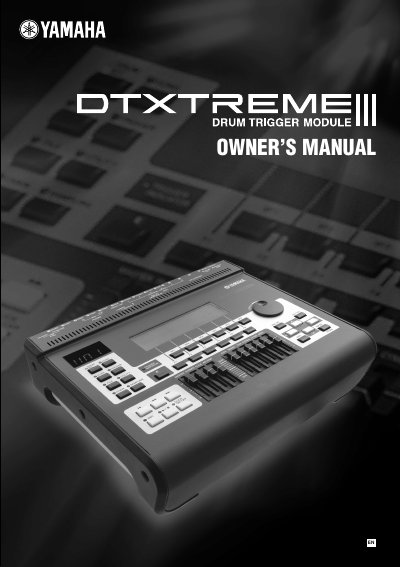

Yamaha DTXTREME III Drum Trigger Module Owner's Manual

About this manual

The Yamaha DTXTREME III is a drum trigger module designed for use with electronic drums. This Owner's Manual covers essential safety precautions, including proper power supply usage (PA-300B adapter), placement to avoid tripping hazards, and environmental conditions to prevent damage. It also details battery handling and disposal regulations.

The document outlines the importance of using high-quality shielded cables and following specific installation instructions to maintain FCC compliance. It includes warnings against modifying the unit or attempting internal repairs, directing users to qualified Yamaha service personnel for any malfunctions.

What's inside

• Safety Precautions
• Power Supply
• FCC Information
• Battery Notice
• Environmental Issues
• Name Plate Location
• Important Notice
• Cable Connections

Frequently asked questions

What is the minimum wire size required for a 25-foot extension cord?

The manual states that the minimum wire size for a 25' cord (or less) is 18 AWG.

What adaptor should be used with this instrument?

You must use the specified PA-300B adaptor or an equivalent recommended by Yamaha.

What happens if liquid seeps into the instrument?

You must turn off the power immediately and unplug the power cord from the AC outlet.
