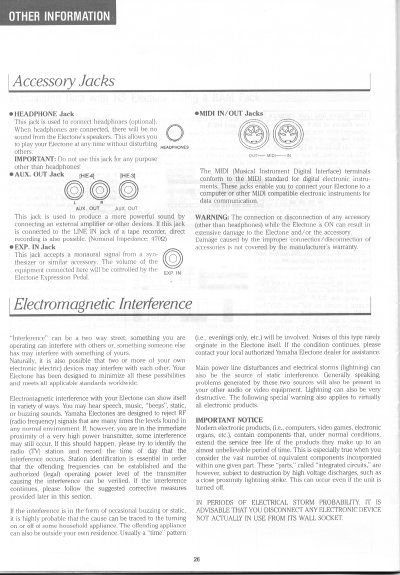

This document provides specific information about the accessory jacks on the Yamaha HE Electone, including the Headphone jack, AUX OUT jack, EXP IN jack, and MIDI IN/OUT jacks. It details the function of each jack and includes important warnings regarding connection safety and electromagnetic interference.
This jack is used to connect headphones, which allows you to play the Electone without sound coming from the speakers.
No, connecting or disconnecting accessories (other than headphones) while the unit is ON can result in extensive damage.
The nominal impedance for the AUX OUT jack is 470 ohms.
