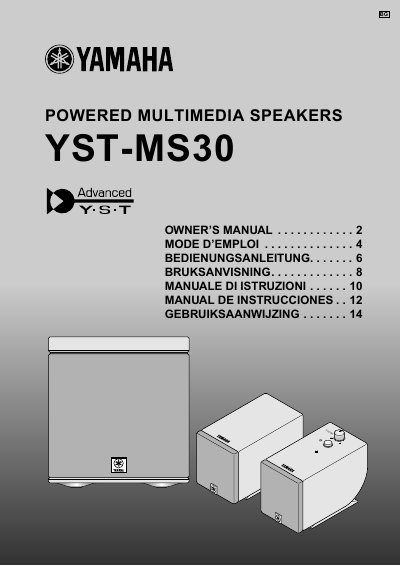

This is the manual of YST-MS30 multimedia speakers
The Yamaha YST-MS30 is a compact powered multimedia speaker system featuring Advanced Yamaha Active Servo Technology. The system consists of a subwoofer and two satellite speakers designed to produce rich bass sound with high performance in a small form factor.
This document serves as the Owner's Manual, guiding users through initial setup including connecting the AC adapter and audio sources via RCA or 3.5mm inputs. It details the operation of volume and bass controls, explains how to adjust speaker angles, and provides safety precautions regarding ventilation and placement.
| Output power (Satellite) | 6 W + 6 W (1 kHz, 4Ω at T.H.D.=10%) |
|---|---|
| Output power (Subwoofer) | 18 W (100 Hz, 4Ω at T.H.D.=10%) |
| Input sensitivity | 200 mV (1 kHz, 4Ω at 6 W) |
| Frequency response | 45 Hz to 20 kHz (Satellite + Subwoofer) |
| Crossover Frequency | 180 Hz |
A typical (recommended) setting is the position between one o'clock and two o'clock.
You must allow a space of at least 20 cm (7-7/8") above, behind, and on both sides of the unit.
Check that the AC adapter is properly plugged in and ensure the standby/on button is turned on.
