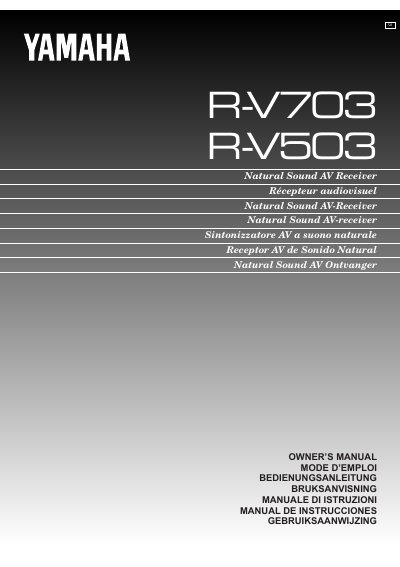

This is the user manual of R-V703/R-V503 Natural Sound AV Receiver
This document is the Owner's Manual for the Yamaha R-V703/V503 AV receiver. It details the supplied accessories, such as indoor FM and AM loop antennas, and explains the unit's features, including 5-speaker configurations, Dolby Pro Logic Surround decoding, and Cinema DSP technology. The manual covers various topics including speaker setup, connections, control functions, and tuning operations.
| Main Output Power (U.S.A. model) | 80W + 80W (8Q) RMS Output Power, 0.09% THD, 1 kHz |
|---|---|
| Main Output Power (Europe/Canada/etc.) | 60W + 60W (8Q) RMS Output Power, 0.09% THD, 1 kHz |
| Center Output Power (U.S.A. model) | 80W (8Q) RMS Output Power, 0.09% THD, 1 kHz |
| Center Output Power (Europe/Canada/etc.) | 60W (8Q) RMS Output Power, 0.09% THD, 1 kHz |
| Rear Output Power | 20W + 20W (8Q) RMS Output Power, 0.09% THD, 1 kHz |
| FM Preset Stations | 40-Station Random Access Preset Tuning |
| Remote Control Range | Approximately 6 m (19.7 feet) |
The remote control requires AA, R6, or UM-3 batteries.
Allow at least 20 cm behind, 20 cm on both sides, and 30 cm above the top panel.
The receiver supports a 5 Speaker Configuration.
