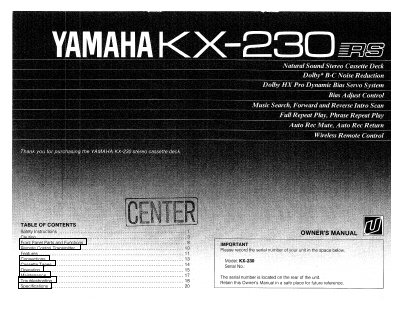

Yamaha KX-230 Stereo Cassette Deck Owner's Manual

Brand: Yamaha
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 22
File format: PDF
File size: 2.2 MB
Published: 11 June, 2012
Updated: 11 June, 2012
MD5 checksum: C9946E24B3DC9698D8CDBC1E27EB1792
PDF: Yamaha KX-230 Stereo Cassette Deck Owner's Manual PDF

About this manual

The Yamaha KX-230 is a natural sound stereo cassette deck featuring Dolby B noise reduction, Dynamic Bias Servo System, and various playback modes including Full Repeat and Phrase Repeat. The unit supports multiple tape types including normal, CrO2, and metal tapes with specific frequency response characteristics for each.

What's inside

Safety Instructions
Front Panel Parts and Functions
Remote Control Transmitter
Connections
Cassette Tapes
Operation
Maintenance
Troubleshooting
Specifications

Specifications

Frequency Response (Normal tape)	20 - 15,000 Hz +3 dB
Frequency Response (Metal tape)	20 - 19,000 Hz +3 dB
Signal-to-Noise Ratio (Dolby C NR on)	better than 74 dB
Power Consumption	18W
Dimensions (WxHxD)	435 x 112 x 273 mm
Weight	9 lbs. 4 oz.

Frequently asked questions

What tape types does the KX-230 support?

The unit supports Normal, CrO2, and Metal tapes with specific frequency response adjustments for each type.

Does the KX-230 include Dolby noise reduction?

Yes, it features Dolby B and C noise reduction systems.
