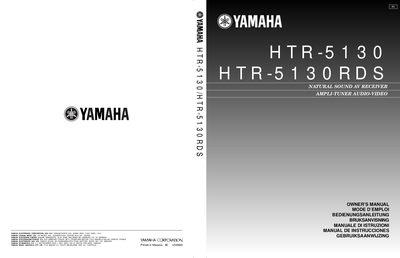

Yamaha HTR-5130/HTR-5130RDS Natural Sound AV Receiver Owner's Manual

This is the owner's manual for HTR-5130/HTR-5130RDS NATURAL SOUND AV RECEIVER AMPLI-TUNER AUDIO-VIDEO from YAMAHA

Brand: Yamaha
Category: Player
Document type: User Manual
Language: English
Pages: 42
File format: PDF
File size: 551 KB
Published: 08 June, 2012
Updated: 01 October, 2023
Model: HTR-5130
MD5 checksum: A9560B2E16E0E9EA2D3B1F20B4A83075
PDF: Yamaha HTR-5130/HTR-5130RDS Natural Sound AV Receiver Owner's Manual PDF

About this manual

The document is an owner's manual for the Yamaha HTR-5130 and HTR-5130RDS Natural Sound AV Receivers. It details the supplied accessories, including indoor FM antennas and remote control transmitters, and outlines safety precautions such as proper ventilation and grounding requirements.

What's inside

Supplied Accessories
Features
Caution
Speaker Setup
Controls and Their Functions
Basic Operations
Tuning Operations
Using Digital Sound Field Processor (DSP)
Setting the Sleep Timer
Troubleshooting

Specifications

Main Speaker Output Power	60W + 60W (8Q) RMS Output Power, 0.04% THD, 20-20,000 Hz
Center Speaker Output Power	60W (8Q) RMS Output Power, 0.04% THD, 20-20,000 Hz
Rear Speaker Output Power	60W + 60W (8Q) RMS Output Power, 0.04% THD, 20-20,000 Hz
Remote Control Range	Approximately 6 m (19.7 feet)

Frequently asked questions

What batteries are required for the remote control transmitter?

The remote control requires AA, R6, or UM-3 size batteries.

How far is the effective range of the remote control?

The remote control operates within approximately 6 meters or 19.7 feet.
