The AKD5393 is an audio 24-bit A/D converter from ASAHI KASEI that includes a full-differential input buffer circuit and a digital interface transmitter. It can be used with AKM's DAC evaluation boards or with CS8402 as a DIT to transmit optical output.

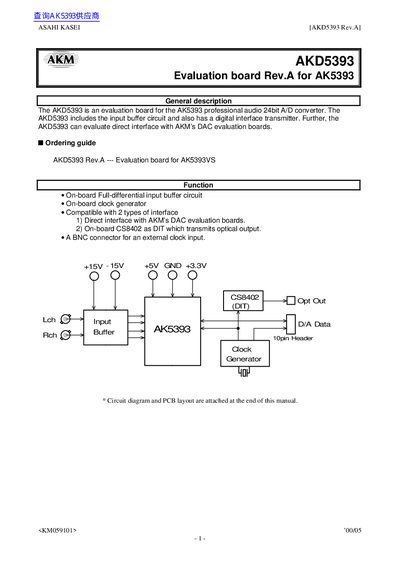

The AKD5393 is an evaluation board designed for the AK5393 professional audio 24bit A/D converter. It features an on-board full-differential input buffer circuit with an inverted amp (gain: -10dB) and includes a digital interface transmitter. The board supports direct interface with AKM's DAC evaluation boards or uses an on-board CS8402 as a DIT to transmit optical output.
| Compatible Chip | AK5393 professional audio 24bit A/D converter |
|---|---|
| Clock Generator | On-board |
| Interface Types | Direct interface with AKM's DAC evaluation boards or On-board CS8402 as DIT |
It is an evaluation board for the AK5393 professional audio 24bit A/D converter that includes an input buffer circuit and a digital interface transmitter.
The board requires VP+=+15V, VP-=-15V, VA+=+5V, VD+=+3.3V~5.25V, and AGND=DGND=0V.
