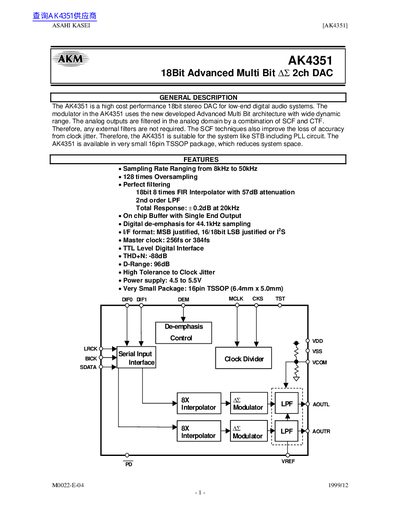

The AK4351 is a high cost performance 18bit stereo DAC for low-end digital audio systems. The modulator in the AK4351 uses the new developed Advanced Multi Bit architecture with wide dynamic range. The analog outputs are filtered in the analog domain by a combination of SCF and CTF. Therefore, any external filters are not required. The SCF techniques also improve the loss of accuracy from clock jitter. Therefore, the AK4351 is suitable for the system like STB including PLL circuit. The AK4351 is available in very small 16pin TSSOP package, which reduces system space.
The AK4351 is a high cost-performance 18-bit stereo DAC designed for low-end digital audio systems. It utilizes a new Advanced Multi Bit architecture with wide dynamic range to ensure high quality sound reproduction. The device includes an on-chip buffer and analog domain filtering, eliminating the need for external filters in many applications.
| Resolution | 18 Bits |
|---|---|
| THD+N (0dB Output) | -88 dB |
| Dynamic Range (-60dB Output, A-weight) | 96 dB |
| Sampling Rate Ranging | 8kHz to 50kHz |
| Power Supply Voltage | 4.5 to 5.5V |
| Package Type | 16pin TSSOP |
The recommended power supply voltage (VDD) ranges from 4.5V to 5.5V.
The device can operate in an ambient temperature range of -40°C to +85°C.
No, any external filters are not required because the analog outputs are filtered in the analog domain by a combination of SCF and CTF.
