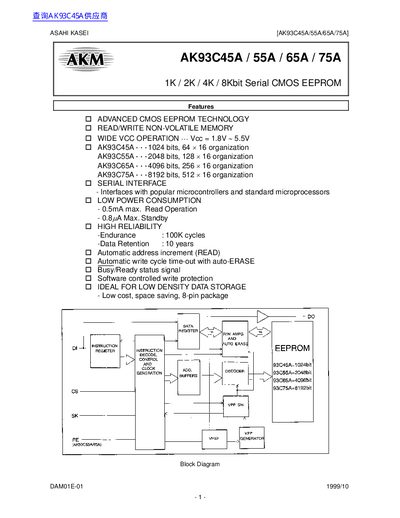

ASAHI KASEI [AK93C45A/55A/65A/75A] DAM01E-01 is a 1K/2K/4K/8K-bit serial CMOS EEPROM with wide operating voltage range and low power consumption. It is ideal for low density data storage and offers high reliability and automation features.
The AK93C45A/55A/65A/75A series are low‑density serial CMOS EEPROMs offering 1 K to 8 K bits of non‑volatile memory in 8‑pin SOP/TSSOP packages. They operate over a wide voltage range (1.8 V – 5.5 V) and temperature range (‑40 °C – 85 °C), with low power consumption and high reliability.
The devices use a simple 4‑wire serial interface (CS, SK, DI, DO) and support four basic instructions (READ, WRITE, EWEN, EWDS). Features include automatic address increment, busy/ready status signaling, software‑controlled write protection, and endurance of 100 k cycles with a 10‑year data‑retention guarantee.
| Memory size (AK93C45A) | 1024 bits (64 × 16) |
|---|---|
| Memory size (AK93C55A) | 2048 bits (128 × 16) |
| Memory size (AK93C65A) | 4096 bits (256 × 16) |
| Memory size (AK93C75A) | 8192 bits (512 × 16) |
| Operating voltage range | 1.8 V – 5.5 V |
| Temperature range | -40 °C – 85 °C |
| Package | 8‑pin Plastic SOP / TSSOP |
| Standby current | 0.8 µA max |
| Read current | 0.5 mA max |
| Endurance | 100 k cycles |
| Data retention | 10 years |
They operate from 1.8 V up to 5.5 V.
The AK93C65A provides 4096 bits organized as 256 × 16 registers.
The maximum standby current is 0.8 µA.
They are rated for 100 k write/erase cycles.
