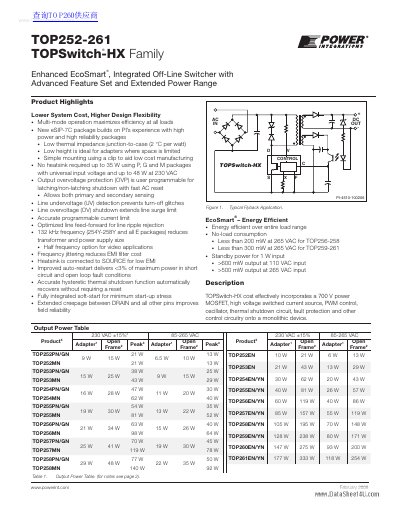

TOPSwitch-HX Family is an enhanced EcoSmart® integrated off-line switcher with advanced feature set and extended power range, which lowers system cost and provides higher design flexibility.
The TOP252-261 TOPSwitch-HX Family is an enhanced EcoSmart integrated off-line switcher designed to maximize efficiency across all loads. These devices incorporate a 700 V power MOSFET, high voltage switched current source, PWM control, oscillator, thermal shutdown circuit, and fault protection onto a monolithic device. The family offers various package options including P (DIP-8C), G (SMD-8C), M (SDIP-10C), Y (TO-220-7C), and E (eSIP-7C), with specific configurations for different power levels and input voltages.
| No-load consumption (TOP256-258) | Less than 200 mW at 265 VAC |
|---|---|
| No-load consumption (TOP259-261) | Less than 300 mW at 265 VAC |
| Switching Frequency (E packages) | 132 kHz |
| Power MOSFET Voltage | 700 V |
| Thermal Shutdown | Hysteretic |
Less than 200 mW at 265 VAC.
Less than 300 mW at 265 VAC.
No heatsink is required up to 35 W using P, G and M packages.
