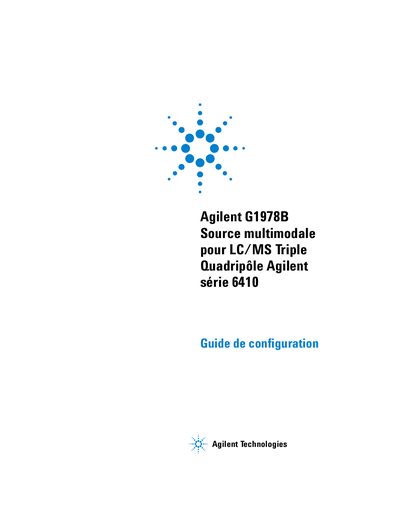

Agilent G1978B Multimode Source for LC/MS Triple Quad 6410 Setup Guide

About this manual

This document is a setup guide for the Agilent G1978B multimode ionization source, designed for use with Agilent 6410 Series Triple Quadrupole LC/MS systems. It provides instructions for installing the source and its required transformation kit, as well as procedures for converting the source between multimode, ESI, and APCI configurations.

The guide covers the installation of necessary high voltage cables and control cards, the physical installation and removal of the source, and the configuration of methods within the instrument software to utilize the multimode source. It also includes performance verification steps and troubleshooting instructions. This manual is written in French.

What's inside

• Installation
• Preparation of installation
• Installation of cables and HT control card
• Source change
• Removal of multimode source
• Conversion to ESI or APCI source
• Conversion from ESI or APCI to multimode source
• Performance verification
• Method consultation and worklist execution
• Source sensitivity verification

Frequently asked questions

Who is qualified to install the multimode source?

Installation must be performed only by qualified Agilent customer engineers.

What kit must be installed before using the source?

You must install the multimode source conversion kit (reference G1978-60451) before use.
