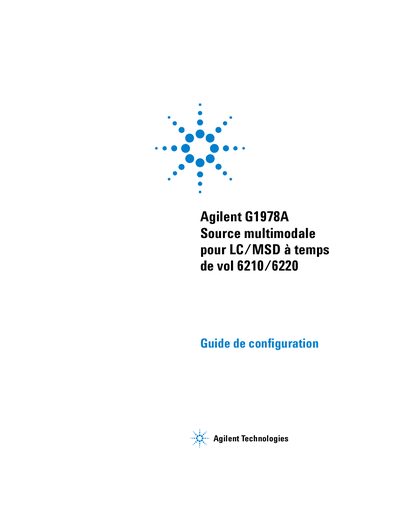

Agilent G1978A Multimode Source for LC/MSD TOF 6210/6220 Installation and Maintenance Guide

About this manual

This document serves as an installation and maintenance guide for the Agilent G1978A Multimode Source designed for Agilent 6210 and 6220 LC/MSD Time-of-Flight (TOF) systems. It details the physical replacement of existing sources, including hardware modifications to power and analyzer cards, as well as the installation of gas connections and nebulizers. This manual is written in French.

What's inside

• Installation
• Software Upgrade
• Verification of Installation
• Source Replacement
• Hardware Configuration

Frequently asked questions

What software versions support the G1978A multimode source?

The source is supported by TOF version A.02.00 or A.02.01 with patch G1978-10004, MassHunter for TOF A.02.02, and MassHunter for TOF B.01.03 or higher.

What steps are required when upgrading from software A.02.02 to B.01.03?

You must completely uninstall the Analyst software and reimage the computer to verify that the Analyst installation was removed.

What is included in this guide's scope regarding the G1978A source?

This guide contains instructions for installing, replacing, and verifying the multimode source for LC/MSD time-of-flight 6210/6220.
