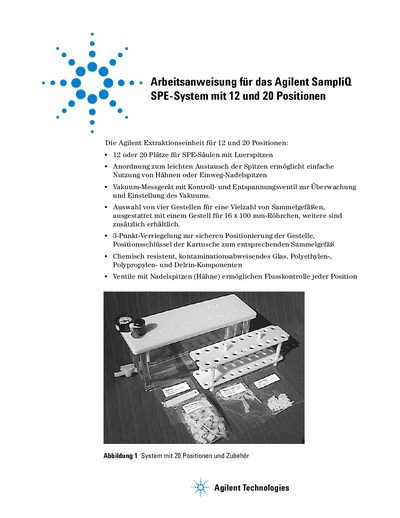

This document describes the Agilent Technologies SampliQ SPE-System with 12 and 20 positions. The system features easy exchange of Luerspitzen, a vacuum gauge with control and relief valve for monitoring and adjusting vacuum. Additionally, the system offers a selection of racks for various collection vessels, and is made with chemically resistant materials, including glass, polyethylene, polypropylene, and Delrin components. The system also includes valves with needle tips for flow control at each position.
This manual provides installation instructions for the Agilent SampliQ SPE-System, available in configurations for 12 or 20 positions. The document details how to identify components, install needles and valves, set up the vacuum system, and operate the extraction unit for parallel processing of cartridges. This manual is written in German.
| Vacuum Connection Size | 3/8" ID vacuum hose |
|---|---|
| Document Part Number | 5973-1717 |
No, Luer stoppers must only be used with needle tips and not inserted directly into the deck.
Lift the component carefully with the extractor to prevent it from sliding out.
