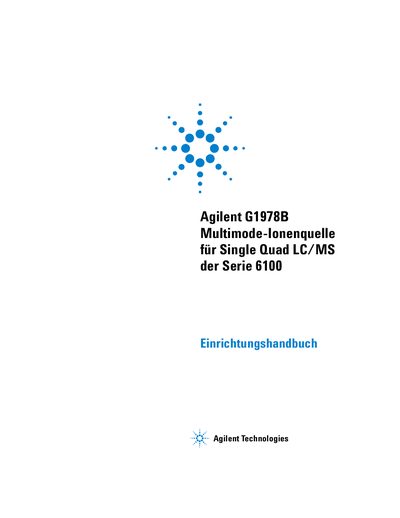

Agilent G1978B Multimode Ion Source for 6100 Series Single Quad LC/MS Set-Up Guide

This document is the user manual for Agilent Technologies Agilent G1978B  Multimode-Ionenquelle für Single Quad LC/MS der Serie 6100 Einrichtungshandbuch

Brand: Agilent
Category: Other Electronics
Document type: User Manual
Language: German
Pages: 50
File format: PDF
File size: 1.5 MB
Published: 08 June, 2012
Updated: 30 September, 2023
Models: G1978B, 6100s
MD5 checksum: 61B82233915D2315B361552BF1D1ACBC
PDF: Agilent G1978B Multimode Ion Source for 6100 Series Single Quad LC/MS Set-Up Guide PDF

About this manual

This document serves as a set-up guide for the Agilent G1978B Multimode Ion Source, designed for use with Single Quad LC/MS systems of the 6100 series. It details the installation process, including the preparation of the Multimode Enablement Kit and the installation of the HV control PCA and cables. The guide also explains how to remove the source and switch between different ionization modes such as ESI, APCI, and APPI. This manual is written in German.

What's inside

Installation
Verification
Methods
HV Control PCA
Ion Source Removal
Mode Switching
Sensitivity Verification
Automatic Tuning
Method Setup
Mixed Mode Operation

Specifications

Compatible Software	ChemStation B.03.01 or higher
Document Part Number	G1978-92070

Frequently asked questions

Who must install the Multimode Ion Source?

The Multimode Ion Source must be installed by an Agilent Customer Service Technician.

What kit is required before using the source?

The Multimode Enablement Kit G1978-60451 must be installed before using the source.
