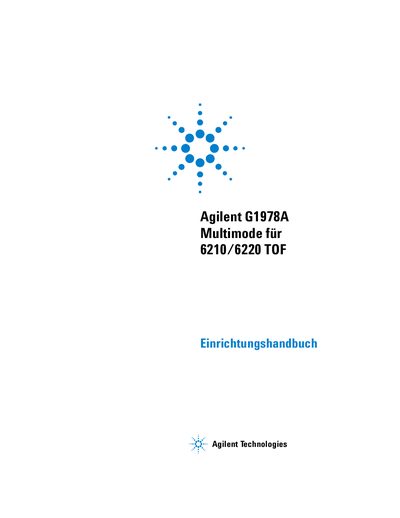

Agilent G1978A Multimode for 6210/6220 TOF Installation Guide

About this manual

This document provides instructions for installing the Agilent G1978A Multimode ion source on 6210/6220 TOF mass spectrometers. It details the physical steps required to replace the existing E-Tub Electronics with the new Multimode components, including changing firmware chips and connecting high-voltage control cables. This manual is written in German.

What's inside

• Installation
• Vorbereitung der Installation
• Entfernen der TOF E-Tub Electronics
• Andern der Firmware-Chips
• Installieren der 1QMoQ-Kabel
• HV-Steuerungs-PCA installieren
• Anbringen der Multimode-Ionenquelle
• Installation des Zerstaubers und Gasverbindungen
• Aktualisierung der TOF-Software
• Uberprufung der Installation

Specifications

Frequently asked questions

What software is required to support the G1978A Multimode ion source?

The system requires TOF Software A.02.00 or A.02.01 with the G1978-10004-Patch and MassHunter Workstation Acquisition for TOF B.01.03 or higher.

Is it necessary to remove the Analyst software before updating?

Yes, if updating from version A.02.02 to B.01.03 or higher, the Analyst software must be completely removed.
