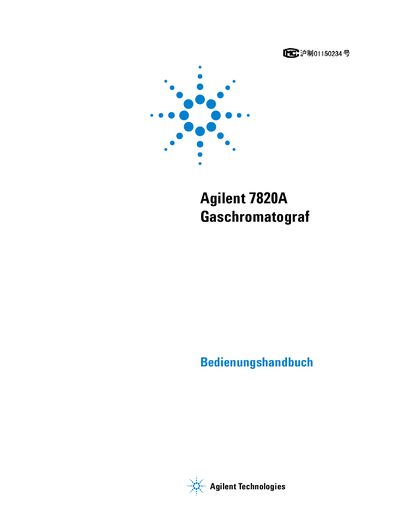

This manual describes the operation of Agilent 7820A Gas Chromatograph
This document is the German Bedienungshandbuch (Operation Manual) for the Agilent 7820A Gas Chromatograph. It provides comprehensive instructions on operating the instrument using the integrated software keypad and the hardware interface.
The manual covers essential topics including safety warnings, introduction to chromatography, detailed descriptions of the GC module and detectors, and step-by-step procedures for starting and stopping the system. It also explains how to configure the EPC (Electronic Pressure Control) module for different detectors and manage method sequences. This manual is written in German.
The setting for detector air should be 550 kPa (80 psi).
The main dangers include burns from hot areas, exposure to hazardous chemicals from open inlet valves, cuts from sharp capillary column ends, and the use of hydrogen as a carrier gas.
The source gases (helium, hydrogen, and nitrogen) should be set to 400 kPa (60 psi), and the detector air should be set to 550 kPa (80 psi).
