The SL4012B is a high-voltage silicon-gate CMOS dual 4-input NAND gate produced by System Logic Semiconductor SLS. The operating voltage range is 3.0 to 18 V, the maximum input current is 1 µA, and the noise margin is 1.0 V min @ 5.0 V, 2.0 V min @ 10.0 V, and 2.5 V min @ 15.0 V.

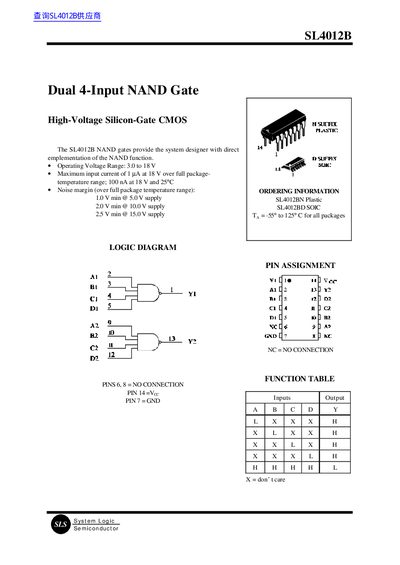

This document is a datasheet for the System Logic SL4012B, a Dual 4-Input NAND Gate IC utilizing High-Voltage Silicon-Gate CMOS technology. It is designed to provide system designers with direct implementation of the NAND function.
| Operating Voltage Range | 3.0 to 18 V |
|---|---|
| Operating Temperature | -55 to +125 °C |
The device operates with a DC supply voltage range of 3.0 to 18 V.
The device operates with a DC supply voltage between 3.0 V and 18 V.
The maximum input current is +10 mA per pin.
Each gate has four inputs labeled A, B, C, and D.
