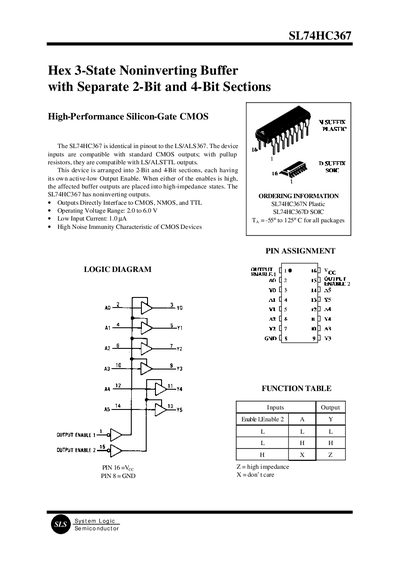

The SL74HC367 is a high-performance hex 3-state noninverting buffer with separate 2-bit and 4-bit sections. It has outputs that directly interface to CMOS, NMOS, and TTL, with an operating voltage range of 2.0 to 6.0V. It has low input current and high noise immunity characteristic of CMOS devices.
The SL74HC367 is a hex 3‑state non‑inverting buffer with separate 2‑bit and 4‑bit sections, each having its own active‑low output enable. It is pin‑compatible with the LS/ALS367 and can interface directly with CMOS, NMOS, and TTL logic families.
Key specifications include an operating voltage range of 2.0 V to 6.0 V, low input current, and maximum output currents of 35 mA per pin. The device is offered in Plastic DIP and SOIC packages, with power dissipation up to 750 mW (DIP) and 500 mW (SOIC). Recommended operating conditions and detailed DC/AC electrical characteristics are provided for design reference.
| Operating Voltage Range | 2.0 V to 6.0 V |
|---|---|
| Input Current per Pin | +20 mA |
| Output Current per Pin | +35 mA |
| Power Dissipation (Plastic DIP) | 750 mW |
| Storage Temperature Range | -65 °C to +150 °C |
The device operates with a supply voltage between 2.0 V and 6.0 V.
The maximum supply current for the DIP package is 75 mA.
The part is offered in Plastic DIP and SOIC packages.
The maximum input capacitance is 10 pF.
