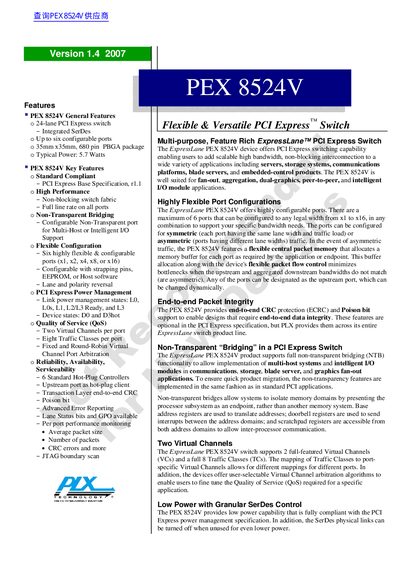

PEX 8524V is a configurable, high-performance, non-blocking PCI Express switch that features six highly flexible and configurable ports that can be configured as x1, x2, x4, x8, or x16 and supports the PCI Express 1.1 specification.
The PLX PEX 8524V is a multi-purpose, feature-rich PCI Express switch designed for scalable high-bandwidth interconnection in servers, storage systems, and communications platforms. It features a 24-lane architecture with up to six configurable ports that can be set to any legal width from x1 to x16 in any combination to support specific bandwidth needs.
Key capabilities include non-transparent bridging for multi-host systems, support for two virtual channels and eight traffic classes for Quality of Service, and advanced error reporting. The device also offers flexible configuration via strapping pins, EEPROM, or host software, along with comprehensive power management compliance.
| Lanes | 24-lane |
|---|---|
| Ports | Up to six configurable ports |
| Package | 35mm x35mm, 680 pin PBGA |
| Typical Power | 5.7 Watts |
| Compliance | PCI Express Base Specification, r1.1 |
| Hot-Plug Controllers | 6 Standard Hot-Plug Controllers |
| Virtual Channels | Two Virtual Channels per port |
| Traffic Classes | Eight Traffic Classes per port |
The typical power consumption is 5.7 Watts.
It supports up to six configurable ports.
Yes, it includes 6 Standard Hot-Plug Controllers and the upstream port acts as a hot-plug client.
