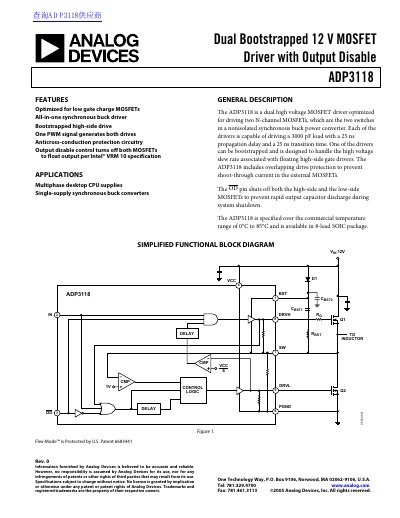

The ADP3118 is a dual high voltage MOSFET driver optimized for driving two N-channel MOSFETs, which are the two switches in a nonisolated synchronous buck power converter. Each of the drivers is capable of driving a 3000 pF load with a 25 ns propagation delay and a 25 ns transition time. One of the drivers can be bootstrapped and is designed to handle the high voltage slew rate associated with the high output voltage.
The ADP3118 is a dual high voltage MOSFET driver designed to drive two N-channel MOSFETs in nonisolated synchronous buck power converters. It features an all-in-one synchronous buck driver with bootstrapped high-side drive and anticross-conduction protection circuitry.
| Supply Voltage Range (VCC) | 4.15 V to 13.2 V |
|---|---|
| Operating Ambient Temperature Range | 0°C to 85°C |
| Package Type | 8-lead SOIC |
When low, this pin disables normal operation, forcing DRVH and DRVL low to shut off both MOSFETs.
Yes, it includes overlapping drive protection to prevent shoot-through current in the external MOSFETs.
The device can operate with a junction temperature range of 0°C to 150°C.
