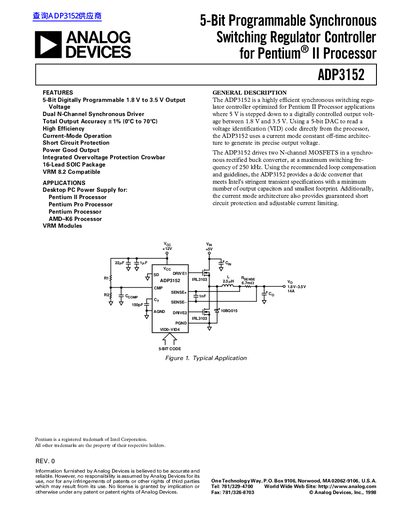

The ADP3152 is a highly efficient synchronous switching regulator controller optimized for Pentium II Processor applications where 5 V is stepped down to a digitally controlled output voltage between 1.8 V and 3.5 V. Using a 5-bit DAC to read a voltage identification (VID) code directly from the processor, the ADP3152 uses a current mode constant off-time architecture to generate its precise output voltage.
The ADP3152 is a highly efficient synchronous switching regulator controller designed to step down 5V input voltage to a digitally controlled output between 1.8V and 3.5V. It utilizes a 5-bit DAC to read Voltage Identification (VID) codes directly from the processor, employing current-mode constant off-time architecture.
| Output Voltage Range | 1.8 V to 3.5 V |
|---|---|
| Total Output Accuracy | +1% |
| Maximum Switching Frequency | 250 kHz |
| Operating Temperature Range | 0°C to +70°C |
| Package Type | 16-Lead SOIC |
It is optimized for Pentium II, Pentium Pro, and Pentium processors, as well as AMD-K6 processors.
It uses a 5-bit DAC to read a voltage identification (VID) code directly from the processor.
