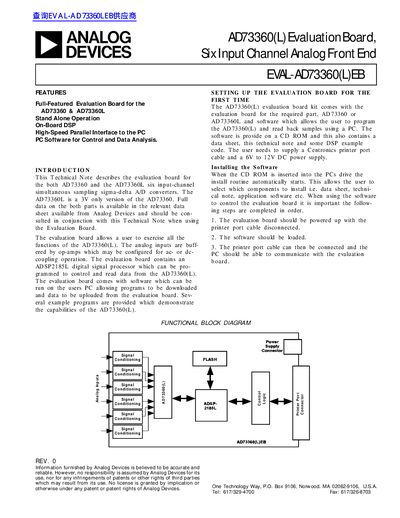

Analog Devices EVAL-AD73360(L)EB Evaluation Board User Guide

This document is about the evaluation board for the AD73360 and AD73360L six input-channel simultaneous sampling Sigma-Delta A/D converters. The evaluation board is fully-featured and can operate independently with a high-speed parallel interface to a PC. The document describes the features and usage of the evaluation board.

Brand: Analog Devices
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 9
File format: PDF
File size: 288 KB
Published: 08 June, 2012
Updated: 28 September, 2023
Model: AD73360L
MD5 checksum: 091DBBC0C8A0284909F6F87A79AD77E0
PDF: Analog Devices EVAL-AD73360(L)EB Evaluation Board User Guide PDF

About this manual

The document provides a technical overview of the EVAL-AD73360(L)EB evaluation board designed for the AD73360 and AD73360L six input-channel simultaneous sampling sigma-delta A/D converters. It details features such as stand-alone operation, on-board DSP (ADSP2185L), and high-speed parallel PC interfaces.

What's inside

Features
System Requirements
Setting Up the Evaluation Board
Installing the Software
Power Supply
Link Settings
Evaluation Board Software
Basic Control Functions
Demonstration Programs

Specifications

Supported Devices	AD73360 & AD73360L
On-board DSP	ADSP2185L
Power Input Range	+9 V to +12 V DC
DSP Power Voltage	+3.2 V
Default Clock Frequency	16.384MHz

Frequently asked questions

What power supply is required for the evaluation board?

The board can be powered from any +9 V to +12 V DC power supply connected to J0.

What are the system requirements for running the software?

A Pentium 90 IBM Compatible PC with Windows 95, 4Mbytes Hard Disk Space, and a Bidirectional Printer Port.

How do I verify communication between the PC and board?

Click the Get Software Version button; a message box should appear showing the DSP software version.
