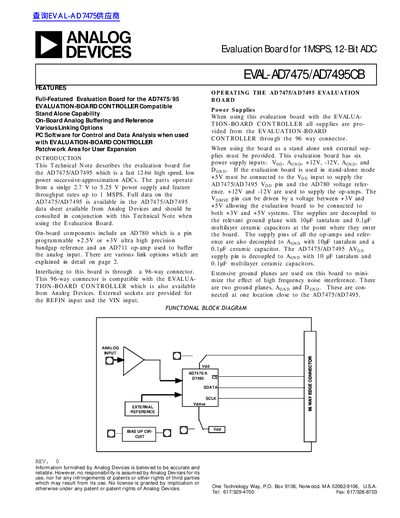

ANALOG DEVICES Evaluation Board for 1MSPS 12-Bit ADC EVAL-AD7475/AD7495CB handbook

This is a technical note describing the evaluation board for the AD7475/AD7495

Brand: Analog Devices
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 13
File format: PDF
File size: 541 KB
Published: 08 June, 2012
Updated: 30 September, 2023
Model: 1MSPS
MD5 checksum: 4B830EA001ECADC41E6CFEBCA867EEA7
PDF: ANALOG DEVICES Evaluation Board for 1MSPS 12-Bit ADC EVAL-AD7475/AD7495CB handbook PDF

About this manual

The document is a technical note describing the EVAL-AD7475/AD7495CB, an evaluation board designed for the AD7475 and AD7495, which are 12-bit high-speed, low-power successive-approximation ADCs. The parts operate from a single 2.7 V to 5.25 V power supply and feature throughput rates up to 1 MSPS.

What's inside

Functional Block Diagram
Features
Operating the Evaluation Board
Power Supplies
Link and Switch Options
Set-Up Conditions
Evaluation Board Interfacing
Connectors

Specifications

Throughput Rate	up to 1 MSPS
Operating Voltage Range	2.7 V to 5.25 V

Frequently asked questions

What is the function of Link LK1?

Link LK1 connects the input of the AD711 op-amp to ground if needed, or routes a signal applied to the AIN socket to the input when in position "A".

How does Link LK2 control the voltage reference?

When Link LK2 is inserted, the AD780 output is set to +3.0 V; when removed, it is set to +2.5 V.

Download PDF (541 KB)
