EVAL-AD7492CB is an evaluation board for the AD7492, which is a 12-bit high precision low power AD converter that supports single power supply and has a working voltage range of 2.7V-5.25V.

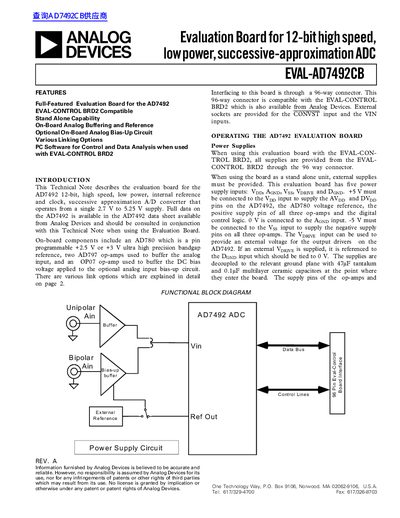

This document describes the EVAL-AD7492CB, a full-featured evaluation board designed for the AD7492 12-bit high-speed, low power successive approximation A/D converter. The board includes on-board components such as an AD780 voltage reference and AD797/OP07 op-amps for buffering analog inputs and DC bias voltages.
| ADC Resolution | 12-bit |
|---|---|
| Supply Voltage Range | 2.7 V to 5.25 V |
| Connector Type | 96-way connector |
The board includes an AD780 voltage reference, two AD797 op-amps for buffering analog inputs, and an OP07 op-amp for biasing.
Yes, it has stand-alone capability, but external power supplies must be provided for Vpp, Vss, and other inputs.
Link 10 selects whether the analog input signal is unipolar or bipolar by connecting to either socket SK1 or SK3.
