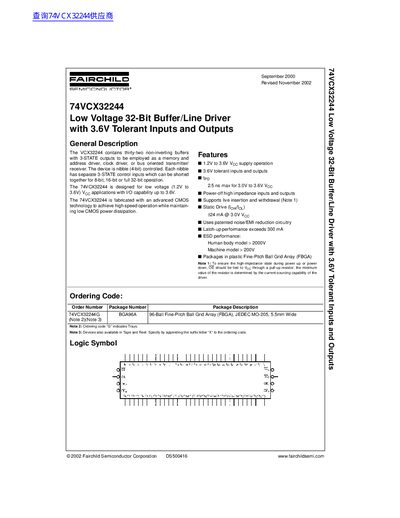

The 74VCX32244 is a low voltage 32-bit buffer/line driver with 3.6V tolerant inputs and outputs. It contains thirty-two non-inverting buffers with 3-STATE outputs that can be used for memory and address driving, clock driving, or bus-oriented transmission/reception. The device is controlled in nibbles (4-bit). Each nibble has separate 3-STATE control inputs that can be shorted together for 8-bit, 16-bit, or full 32-bit operation. The 74VCX32244 is designed for low voltage (1.2V to 3.6V) VCC applications with I/O capability up to 3.6V. It is fabricated with an advanced CMOS technology to achieve high-speed operation while maintaining low CMOS power dissipation.
The 74VCX32244 is a semiconductor device containing thirty-two non-inverting buffers with 3-STATE outputs. It is designed for low voltage (1.2V to 3.6V) applications and features 3.6V tolerant inputs and outputs, allowing operation up to 3.6V on the power supply.
The device supports nibble (4-bit) control, where each nibble has separate 3-STATE control inputs that can be shorted together for 8-bit, 16-bit, or full 32-bit operation. It is fabricated with advanced CMOS technology to achieve high-speed operation while maintaining low power dissipation.
| Supply Voltage Range | 1.2V to 3.6V |
|---|---|
| Input Tolerance | 3.6V tolerant |
| Number of Buffers | Thirty-two |
| Output Type | 3-STATE |
| Package Description | 96-Ball FBGA |
The device operates with a power supply voltage ranging from 1.2V to 3.6V.
Yes, the device features 3.6V tolerant inputs and outputs.
