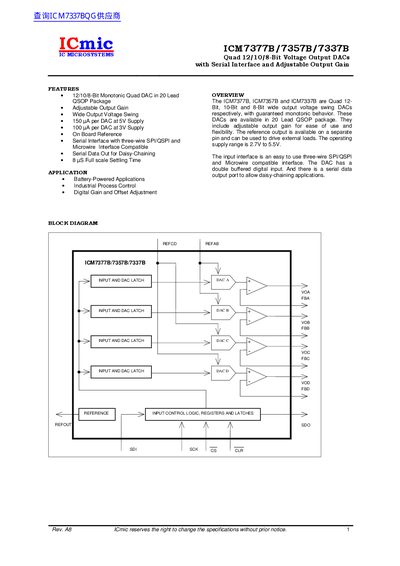

ICM7377B/7357B/7337B is a quad 12/10/8-bit voltage output DACs with serial interface and adjustable output gain. They feature wide output voltage swing, low power consumption, and adjustable gain. They are suitable for battery-powered applications, industrial process control, digital gain and offset adjustment, etc.
The ICM7377B, ICM7357B, and ICM7337B are quad voltage output DACs with 12-bit, 10-bit, and 8-bit resolution respectively. They feature adjustable output gain, serial interface compatibility with SPI/QSPI and Microwire, and are packaged in a 20-lead QSOP. The devices operate from 2.7V to 5.5V and include on-board reference outputs. Each DAC has a double-buffered digital input and supports daisy-chaining via serial data output.
| Resolution | 12/10/8-Bit |
|---|---|
| Package | 20 Lead QSOP |
| Supply Voltage | 2.7V to 5.5V |
| Settling Time | 8 µs |
| Output Voltage Range | 0 to Vop |
| Reference Output Voltage | 1.2 to 1.3V |
| Slew Rate | 2 V/µs |
| Gain Error | 40.5% of FS |
| Offset Error | 425 mV |
| Supply Current | 0.6 to 15 mA |
The operating supply voltage range is 2.7V to 5.5V.
The ICM7377B is 12-bit, the ICM7357B is 10-bit, and the ICM7337B is 8-bit.
The DAC supports a three-wire SPI/QSPI and Microwire compatible interface.
The settling time is 8 µs.
