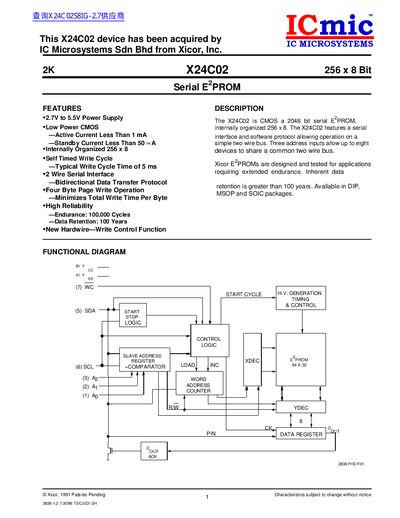

This document describes the features and characteristics of the X24C02 device. It is a 2048-bit serial E2PROM, internally organized as 256 x 8. The device features a serial interface and software protocol, allowing operation on a simple two-wire bus. Three address inputs allow up to eight devices to share a common two-wire bus. Xicor E2PROMs are designed and tested for applications requiring extended endurance. Inherent data retention is greater than 100 years.
The document describes the Icmic X24C02, a CMOS serial EEPROM internally organized as 256 x 8 bits. It is designed for applications requiring extended endurance with data retention greater than 100 years and an endurace of 100,000 cycles. The device operates on a two-wire bus interface compatible with standard I²C protocols.
| Memory Organization | 256 x 8 bit |
|---|---|
| Power Supply Range | 2.7V to 5.5V |
| Active Current | Less Than 1 mA |
| Standby Current | Less Than 50 µA |
| Write Cycle Time | Typical 5 ms |
| Endurance | 100,000 Cycles |
| Data Retention | 100 Years |
The device has a typical write cycle time of 5 ms.
The device is rated for an endurance of 100,000 cycles.
The device provides a data retention of 100 years.
