The PLL502-02 is a low cost, high performance, low phase noise VCXO, providing less than -130dBc at 10kHz offset in the 24MHz to 50MHz operating range.

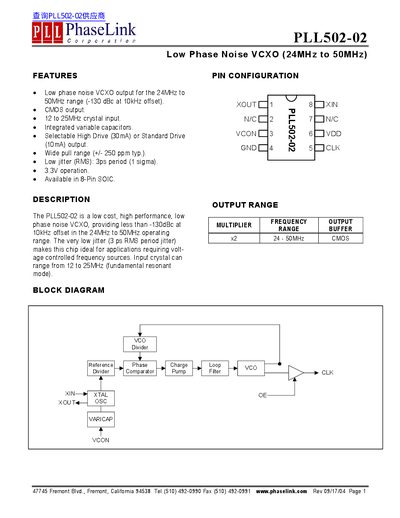

The PhaseLink PLL502-02 is a low cost, high performance, low phase noise VCXO designed for the 24MHz to 50MHz operating range. It features an integrated variable capacitor and provides less than -130dBc phase noise at a 10kHz offset.
The device operates from a single +3.3V supply and is available in an 8-Pin SOIC package. It offers selectable High Drive (30mA) or Standard Drive (10mA) output currents to suit various application requirements.
| Operating Frequency Range | 24MHz to 50MHz |
|---|---|
| Input Crystal Frequency | 12 to 25 MHz |
| Operating Voltage | +3.3V |
| Output Drive Current (High) | 30 mA |
| Output Drive Current (Standard) | 10 mA |
| Pull Range | +/- 250 ppm typ. |
| RMS Period Jitter | 3ps period (1 sigma) |
| Phase Noise @ 10kHz offset | -130 dBc/Hz |
The device provides less than -130dBc at a 10kHz offset.
The VCXO stabilization time is typically 10 ms.
