This product is a low EMI peripheral clock generator that can be used in notebooks and motherboards.

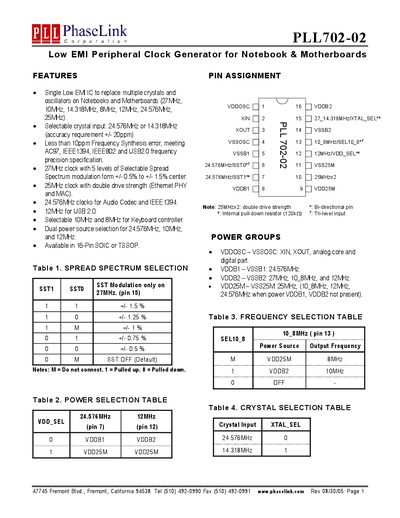

The PhaseLink PLL702-02 is a Low EMI Peripheral Clock Generator designed to replace multiple crystals and oscillators on Notebooks and Motherboards. It supports various frequency outputs including 27MHz, 14.318MHz, 24.576MHz, 12MHz, 10MHz, and 8MHz.
The device features selectable crystal input (24.576MHz or 14.318MHz) with an accuracy requirement of +/- 20ppm. It offers less than 10ppm frequency synthesis error to meet AC97, IEEE1394, IEEE802, and USB2.0 specifications. The chip is available in 16-Pin SOIC or TSSOP packages.
| Operating Voltage | 3.3V (Nominal) |
|---|---|
| Supply Current (No Load) | 17 mA |
| Short-circuit Current | +100 mA |
| Output Rise Time (No load) | 1.5 ns |
| Max. Absolute Period Jitter | 150 ps |
The device accepts either a 24.576MHz or 14.318MHz fundamental crystal.
The device provides less than 10ppm Frequency Synthesis error.
The device is available in 16-Pin SOIC or TSSOP.
