Update: 29 September, 2023

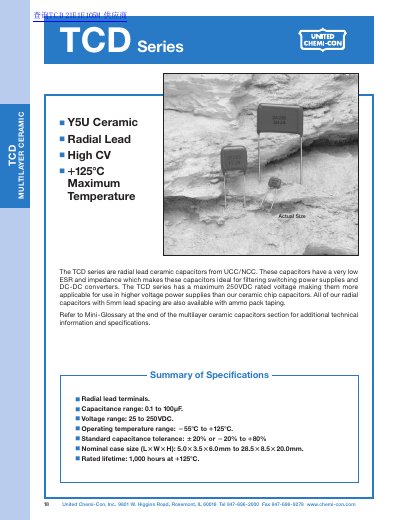

The TCD series are radial lead ceramic capacitors from UCC/NCC. These capacitors have a very low ESR and impedance which makes these capacitors ideal for filtering switching power supplies and DC-DC converters. The TCD series has a maximum 250VDC rated voltage making them more applicable for use in higher voltage power supplies than our ceramic chip capacitors. All of our radial capacitors with 5mm lead spacing are also available with ammo pack taping. Refer to Mini-Glossary at the end of the multilayer ceramic capacitors section for additional technical information and specifications.
File format: PDF
Size: -
MD5 Checksum: 7EC75982583B4849E2E1262F3DBAAA20
Publication date: 07 June, 2012
Downloads: -
PDF Link: UNITED CHEMI-CON TCD Series PDF
