Infresco is a special infrared heater controller, rated at 3.5kW, it will allow you to control a variety of heating and lighting solutions. The Infresco has a 1 to 10 step setting allowing you to find the optimum comfort setting in your specific area. With energy saving a major factor in the design brief, once the Infresco is switched on it will automatically manage the heating system. With a built in temperature sensor only allowing the unit to switch on when required and a PIR that will detects a requirement for the heater to switch on only when needed. An optional remote control allows for the unit to be fitted out of the way so safety is paramount. The Infresco has a built in soft start function which will add up to an additional 30% life to your heater lamp.
The Infresco controller is designed for infrared heaters up to 3.5 kW and includes a built‑in temperature sensor, PIR motion detector, soft‑start function and optional remote control. It offers variable control with a 1‑to‑10 step setting, energy‑saving automatic operation, and safety features such as temperature monitoring and a soft‑start that can extend lamp life by up to 30 %.

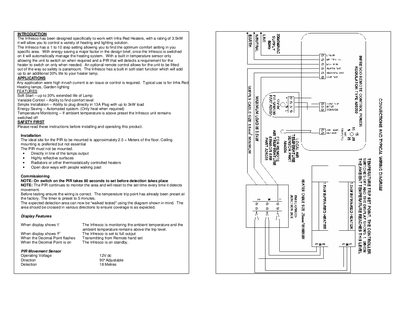

Installation instructions cover mounting the PIR sensor about 2.5 m above the floor (ceiling mounting preferred), wiring requirements, and commissioning steps. The manual also explains display indicators, PIR timing (60 s start‑up, 5‑minute reset), and provides the full technical specifications of the unit.
| Mains Voltage | 230Vac +/- 10% 50 Hz |
|---|---|
| PIR Set Time Period | 5 minutes |
| Temperature Set Point | 5 °C to 25 °C |
| Operating Temperature Range | -20 °C to 30 °C |
| Dimensions (W × D × H) | 200 mm × 110 mm × 60 mm |
The PIR should be mounted approximately 2.5 meters above the floor, with ceiling mounting preferred but not essential.
The PIR requires about 60 seconds after switch‑on before detection begins.
