UMC UM74HCT646 Octal Bus Transceiver Datasheet

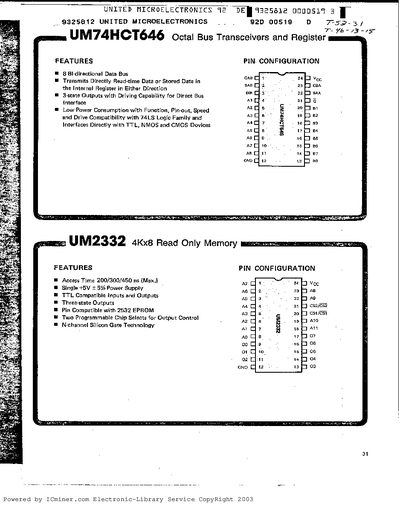

UMC UM74HCT646 Octal Bus Transceiver Datasheet - cover page
Brand
UNITED
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
1
File format
PDF
File size
56 KB
Published
06 June, 2012
Updated
06 June, 2012
MD5 checksum
A7036B33A4196B82971B97BACAF76E6A

About this manual

The document is a technical datasheet for the United Microelectronics Corporation (UMC) part number UM74HCT646. It details the device as an Octal Bus Transceivers and Register featuring bi-directional data bus transmission, three-state outputs, and compatibility with 74LS logic families.

What's inside

  • FEATURES
  • PIN CONFIGURATION

Frequently asked questions

What is the maximum access time for this transceiver?

The maximum access time is 450 ns.

What voltage range does the power supply support?

It supports a single +5V power supply with +/- 5% tolerance.
