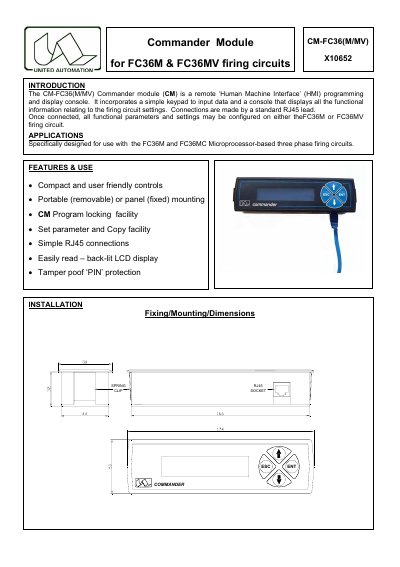

The CM-FC36(M/MV) Commander module (CM) is a remote ‘Human Machine Interface’ (HMI) programming and display console specifically designed for use with the FC36M and FC36MV Microprocessor-based three phase firing circuits. It incorporates a simple keypad to input data and a console that displays all the functional information relating to the firing circuit settings. Connections are made by a standard RJ45 lead. Once connected, all functional parameters and settings may be configured on either theFC36M or FC36MV firing circuit.
The CM-FC36(M/MV) Commander Module is a remote Human Machine Interface (HMI) for programming and displaying settings of FC36M and FC36MV three‑phase firing circuits. It features a simple keypad, back‑lit LCD, and PIN protection for secure operation.
The manual provides instructions for fixing, mounting, and connecting the module via a standard RJ45 lead, covering both portable (removable) and panel (fixed) installations, wiring dimensions, and parameter configuration.
| Supply voltage | DC 5V |
|---|---|
| Current limit set | 0 to 100% of 5V DC |
| Maximum DC current | 60 mA |
| RJ45 socket connection | Underside entry |
| IP rating (front panel) | IP65 |
| Panel cutout size | 45 mm × 168 mm |
| Current limit control | On/Off |
| Soft start option | ON/Off |
| Phase failure detection | FC36MV only |
Connections are made by a standard RJ45 lead.
The module can be installed as a portable (removable) unit or fixed to a panel.
The front panel has an IP65 rating.
