The PTV03020W is a nonisolated power module with various features and applications, suitable for multivoltage digital systems, high-density logic circuits, high-end computers, and servers.

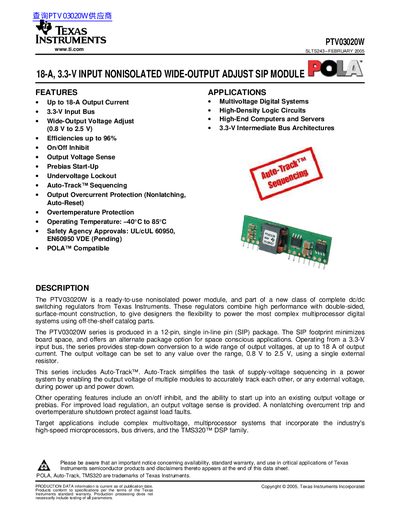

The PTV03020W is a ready-to-use nonisolated power module and part of a new class of complete DC/DC switching regulators from Texas Instruments. These regulators combine high performance with double-sided, surface-mount construction to provide step-down conversion at up to 18 A of output current.
| Output Current | 18 A |
|---|---|
| Input Voltage Range | 2.95 V to 3.6 V |
| Output Voltage Adjust Range | 0.8 V to 2.5 V |
| Efficiency | Up to 96% |
| Operating Temperature Range | -40°C to 85°C |
| Package Type | 12-pin, single in-line pin (SIP) |
| Switching Frequency | 250 kHz to 340 kHz |
The module supports up to 18 A of output current.
Yes, the output voltage can be set to any value over the range of 0.8 V to 2.5 V using a single external resistor.
Yes, it includes Auto-Track which simplifies supply-voltage sequencing by enabling output voltage tracking.
