This document describes the installation requirements for Varian 240-MS GC/MS Ion Trap Mass Spectrometer, including laboratory environment conditions, power requirements, gas requirements, and manpower requirements.

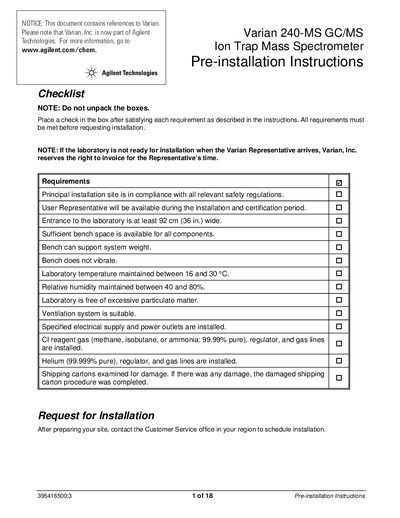

This document provides pre-installation instructions for the Varian (now Agilent) 240-MS GC/MS Ion Trap Mass Spectrometer. It outlines a checklist of requirements that must be met before requesting installation to ensure the process takes no more than three days. Key areas covered include site safety, entrance clearance, bench space and load capacity, vibration control, temperature, humidity, particulate matter, ventilation, and power requirements.
| Optimal Operating Temperature Range | 16 and 30 °C (61 and 86 °F) |
|---|---|
| Relative Humidity Range | 40 and 80% |
| Minimum Entrance Width | 92 cm (36 in.) wide |
| Minimum Bench Depth | 84 cm (33 in.) deep |
| Average Steady-State Heat Load | 6,000 Btu |
| Short-term Heat Dissipation (Startup) | 15,000 Btu |
The entrance to the laboratory must be at least 92 cm (36 in.) wide.
The laboratory temperature should be maintained between 16 and 30 °C, and relative humidity between 40 and 80%.
The bench must be at least 84 cm (33 in.) deep to accommodate the system.
