This manual provides basic operating instructions for the Agilent SH-110 dry scroll vacuum pump

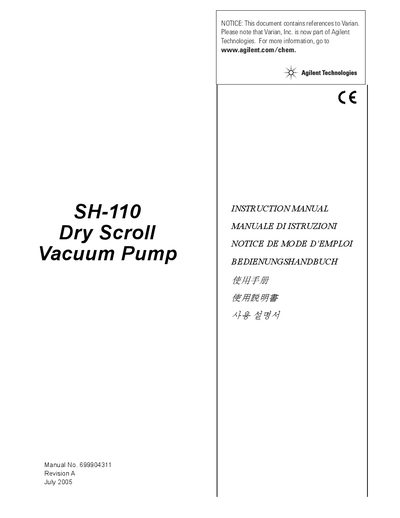

This document is the instruction manual for the Agilent SH-110 Dry Scroll Vacuum Pump. It provides guidance on general information regarding the equipment's design and intended use, as well as safety protocols including warning, caution, and note messages.
The manual covers the full lifecycle of the pump, including storage requirements, installation procedures (unpacking, electrical and mechanical connections), startup and shutdown sequences, daily operation, cleaning methods, and maintenance tasks such as tip seal replacement. It also includes technical specifications, troubleshooting charts, and information on service kits.
| Product Type | hermetic, dry scroll vacuum pump |
|---|---|
| Suitable Gases | air or inert gases |
| Storage Temperature Range | -20 °C to +60 °C (-4 °F to 140 °F) |
| Storage Humidity | 0 to 95% (non-condensing) |
| Total Weight | approximately 20 kg (44 Ibs) |
The pump is suitable for pumping air or inert gases.
No, the pump is not intended to pump corrosive, explosive, or particulate-forming gases.
This equipment is designed for use by professionals who have read the instruction manual.
