CP Clare's UNI-IMP high-speed transient surge protectors (0.55-20kV) provide the ultimate protection from high-energy, fast-rising transients such as Nuclear EMP.

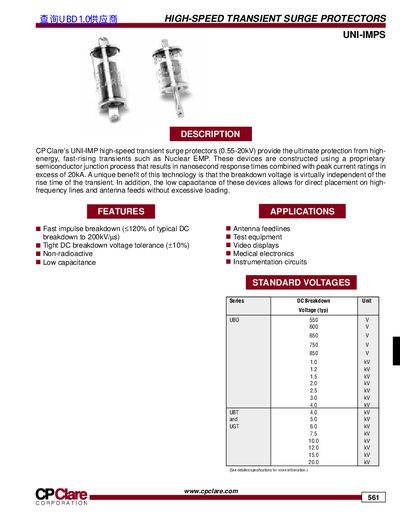

This document provides technical data for the CP Clare UNI-IMP series of high-speed transient surge protectors. These devices are designed to offer ultimate protection from high-energy, fast-rising transients, such as Nuclear EMP, utilizing a proprietary semiconductor junction process.
Key features include nanosecond response times, peak current ratings exceeding 20kA, and low capacitance suitable for direct placement on high-frequency lines and antenna feeds. The datasheet details specifications for various breakdown voltages ranging from 550V to 20kV across UBD, UBT, and UGT series.
| Response Time | nanosecond response times |
|---|---|
| Peak Current Rating | excess of 20kA |
| Capacitance (UBD Series) | 20.0 pF |
| Capacitance (UGT Series) | 3.0 pF |
| Surge Life (UBD Series) | 19,000 surges |
| Surge Life (UBT/UGT Series) | 1300 surges |
| DC Breakdown Voltage Tolerance | +/- 10% |
They provide protection from high-energy, fast-rising transients such as Nuclear EMP.
Yes, their low capacitance allows for direct placement on high-frequency lines and antenna feeds.
