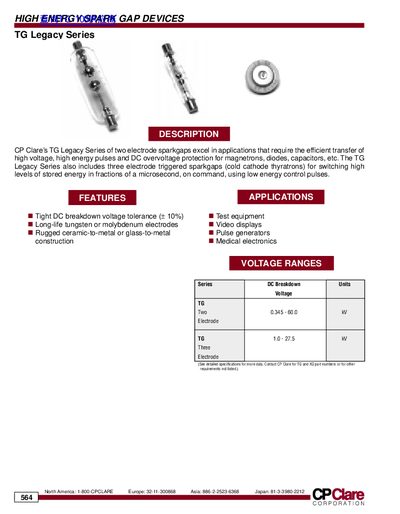

The TG Legacy Series of two electrode sparkgaps excel in applications that require the efficient transfer of high voltage, high energy pulses and DC overvoltage protection for magnetrons, diodes, capacitors, etc.
The TG Legacy Series of two‑electrode and three‑electrode spark gaps are designed for high‑voltage, high‑energy pulse applications such as magnetron, diode, and capacitor protection. The series offers tight DC breakdown voltage tolerance, long‑life electrodes, and rugged ceramic‑to‑metal construction.
The handbook lists detailed electrical specifications, mechanical dimensions, and ordering information for each part number. Tables include DC breakdown voltage ranges, pulse repetition rates, and mechanical outline dimensions, along with contact details for CP Clare worldwide.
| DC Breakdown Voltage range | 0.345 – 60.0 kV |
|---|---|
| DC breakdown voltage tolerance | ±10% |
| Standard pulse repetition rate | 400 pps |
| High‑speed pulse repetition rate (Mode A) | 1500 pps |
| Typical pulse rise time | 0.3 µs |
The standard pulse repetition rate is 400 pulses per second.
North America: 1‑800‑CPCLARE, Europe: 32‑11‑300868, Asia: 886‑2‑2523‑6368, Japan: 81‑3‑3980‑2212.
The series has a DC breakdown voltage tolerance of plus or minus 10 percent.
Mode A operation uses a pulse repetition rate of 1500 pps.
