MID-54419 is a photo diode produced by Unity Opto Technology Co., Ltd., which has high photo sensitivity, low junction capacitance, high cut-off frequency, fast switching time and 40° acceptance angle.

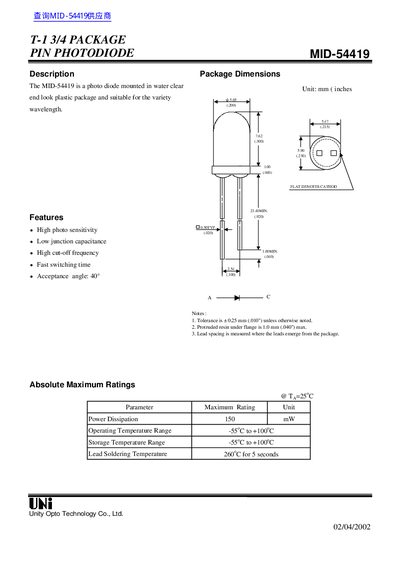

The document describes the MID-54419, a photo diode mounted in a water clear end look plastic package. It is designed with high photo sensitivity, low junction capacitance, and fast switching time for various wavelengths.
Key specifications include an operating temperature range of -55°C to +100°C, a reverse breakdown voltage minimum of 30V, and a total capacitance maximum of 25pF. The datasheet provides typical optical-electrical characteristic curves for dark current, capacitance, spectral sensitivity, and photocurrent versus irradiance.
| Package Type | Water clear end look plastic package |
|---|---|
| Operating Temperature Range | -55°C to +100°C |
| Reverse Breakdown Voltage (Min) | 30 V |
| Total Capacitance (Max) | 25 pF |
| Rise Time | 40 nsec |
The device can operate between -55°C and +100°C.
The lead soldering temperature is limited to 260°C for 5 seconds.
The reverse breakdown voltage has a maximum rating of 30 V.
