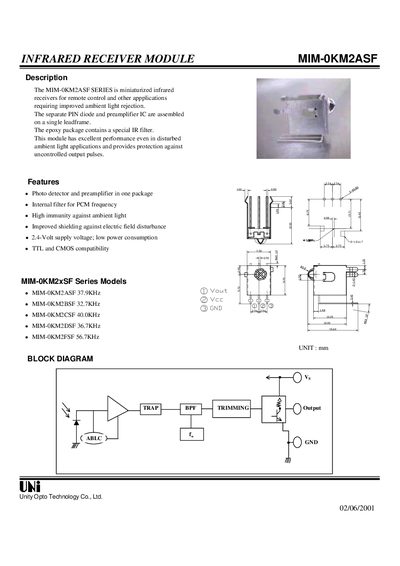

The MIM-0KM2ASF SERIES is miniaturized infrared receivers for remote control and other appplications requiring improved ambient light rejection. The separate PIN diode and preamplifier IC are assembled on a single leadframe. The epoxy package contains a special IR filter. This module has excellent performance even in disturbed ambient light applications and provides protection against uncontrolled output pulses.
The MIM-OKM2ASF series is a miniaturized infrared receiver module designed for remote‑control and other applications that require strong ambient‑light rejection. It integrates a PIN photodiode, pre‑amplifier IC, and an internal IR filter in a single lead‑frame package, offering high immunity to ambient light and electric‑field disturbances.
The datasheet lists absolute maximum ratings, electro‑optical characteristics, and test methods, including supply voltage limits (2.4 V–5.8 V), operating temperature range (‑10 °C to +60 °C), current consumption (5 mA typical), and recommended application circuits. Reliability tests, handling cautions, and warranty information are also provided.
| Supply voltage (max) | 5.8 V |
|---|---|
| Supply voltage range | 2.4 V – 5.8 V |
| Operating temperature | -10 °C to +60 °C |
| Storage temperature | -20 °C to +75 °C |
| Current consumption (no signal) | 5.0 mA |
| Response wavelength | 940 nm |
| Tuning frequencies (model variants) | 37.9, 32.7, 40.0, 36.7, 56.7 kHz |
| High‑level output voltage (Voh) | 2.2 V |
| Low‑level output voltage (Vol) | 0.5 V |
| High‑level pulse width | 400–800 µs |
| Low‑level pulse width | 400–800 µs |
| Maximum detection distance | 10.0 m |
| Half‑angle field of view | ±45° |
The module operates with a supply voltage between 2.4 V and 5.8 V.
The typical current consumption is 5.0 mA under no‑signal conditions.
The device is rated for operation from –10 °C to +60 °C.
The maximum specified distance between emitter and detector is 10.0 m.
