Chip Inductors 0603HP Series (1608) handbook

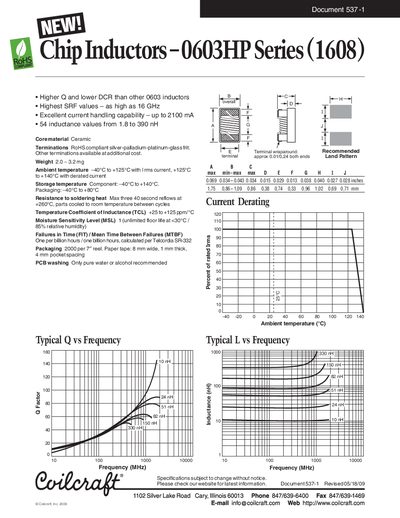

0603HP Series (1608) Chip Inductors Data Sheet

Brand: Chip
Category: Chips
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 233 KB
Published: 06 June, 2012
Updated: 30 September, 2023
MD5 checksum: 32158DD4CB2295563F8777CE08F731C1
PDF: Chip Inductors 0603HP Series (1608) handbook PDF

About this manual

This document provides technical data for the Coilcraft 0603HP Series (1608) chip inductors. Key features include higher Q factors and lower DCR compared to other 0603 inductors, with Self-Resonant Frequencies (SRF) reaching up to 16 GHz.

What's inside

Overall Specifications
Dimensions and Weight
Temperature Ratings
Packaging Information
Part Number Table

Specifications

Inductance Range	1.8 to 390 nH
Maximum SRF	16 GHz
Maximum Current Handling	2100 mA
Operating Temperature Range	-40°C to +125°C
Weight	2.0-3.2mg

Frequently asked questions

What is the Moisture Sensitivity Level (MSL) for these inductors?

The MSL is 1, which allows unlimited floor life at less than 30°C and 85% relative humidity.

What termination material is standard for this series?

The standard termination is RoHS compliant silver-palladium-platinum-glass frit.

What are the available tolerance options?

The standard tolerances shown in the table are 5% (J) and 2%, with special orders for 2% (G).

Download PDF (233 KB)
